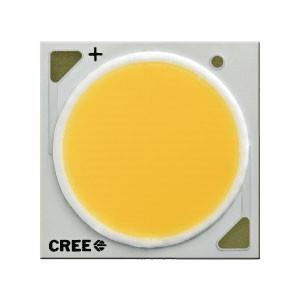

CREE Xlamp COB generation 25* 25 size 30 W COB CXA1820 80CRI 3000k 4000k 5000k for Indoor down light

Product Categories

One Plus Lighting Co., Ltd.

Contact Now

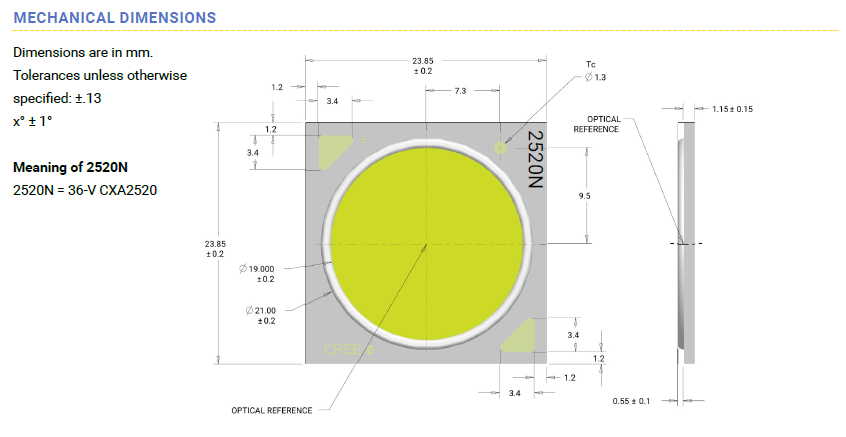

Size : 23.85 x 23.85 mm

Product Options : High-CRI

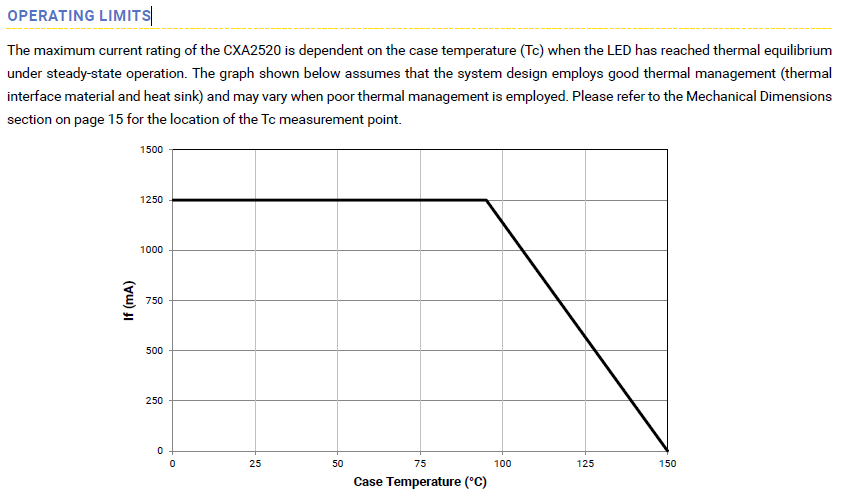

Maximum Drive Current (Standard) : 1.25 A

Max Power (W) : 47 W

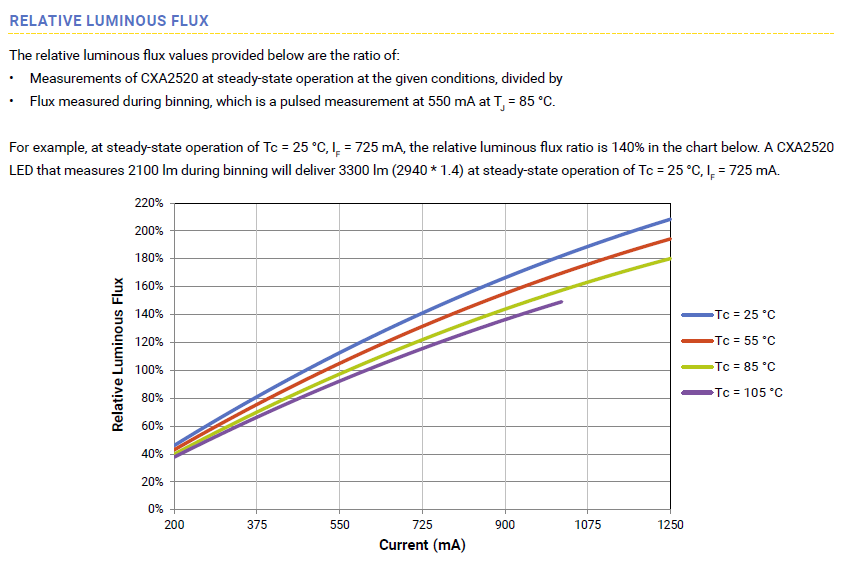

Light Output : 3000 - 5000 lm

Maximum Efficacy at Binning Conditions (lm/W) : 155 lm/W

Light Emitting Surface (LES) : 19 mm

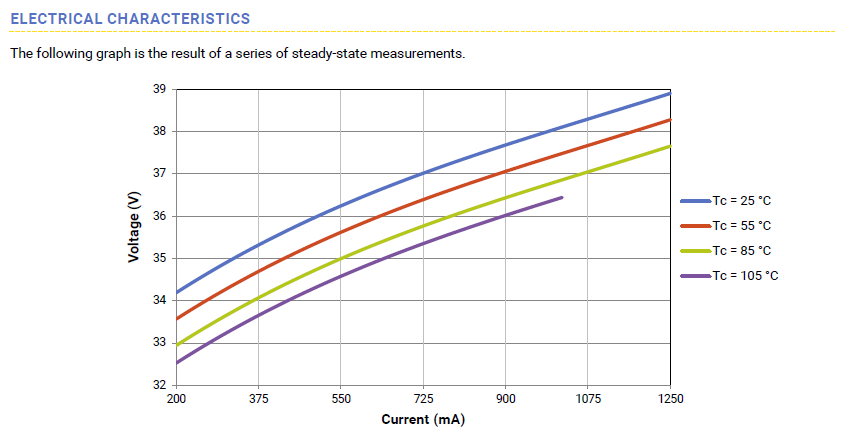

Typical Forward Voltage : 35 V @ 550 mA

Maximum Reverse Current : 0.1 mA

Viewing Angle : 115 °

RoHS-Compliant : Yes

Contact Now

CREE Xlamp COB generation 25* 25 size 30 W COB CXA1820 80CRI 3000k 4000k 5000k for Indoor down light

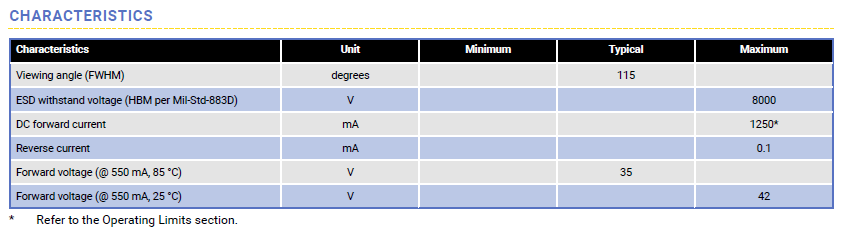

Size	23.85 x 23.85 mm
Product Options	High-CRI
Maximum Drive Current (Standard)	1.25 A
Max Power (W)	47 W
Light Output	3000 - 5000 lm
Maximum Efficacy at Binning Conditions (lm/W)	155 lm/W
Light Emitting Surface (LES)	19 mm
Typical Forward Voltage	35 V @ 550 mA
Maximum Reverse Current	0.1 mA
Viewing Angle	115 °
Binning	85°C ANSI (White) 2- and 4-Step EasyWhite^®
Maximum ESD Withstand Voltage	8000 V (HBM per Mil-Std-883D)
RoHS-Compliant	Yes
REACh-Compliant	Yes
UL-Recognized	Yes - Level 4 Enclosure Consideration

CREE Xlamp COB generation 25* 25 size 30 W COB CXA1820 80CRI 3000k 4000k 5000k for Indoor down light
